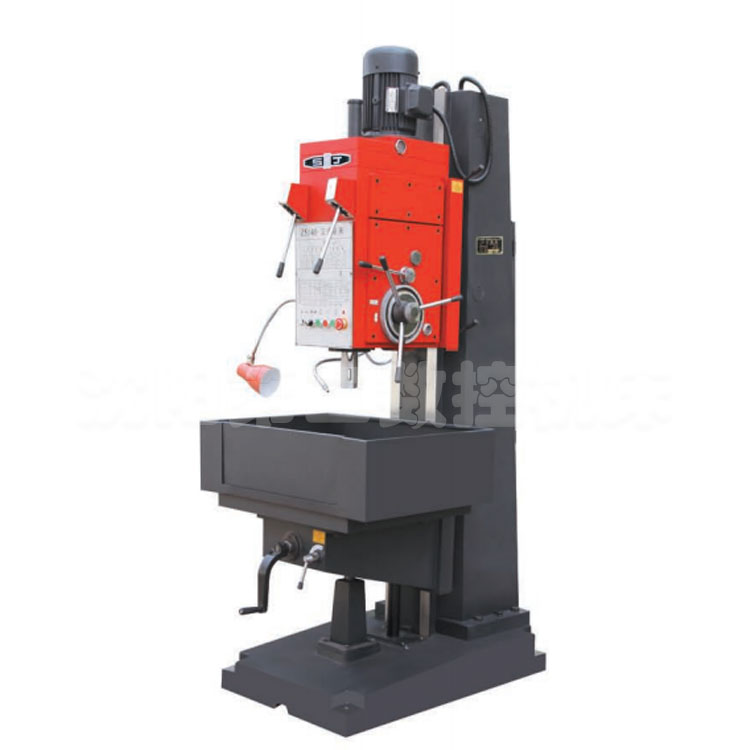

主要技术参数 | Z5140 | Z5150 |
钻孔最大直径mm (在抗拉强度为500-600MPa的钢材上) Max.drilling dia |
40 | 50 |
主轴圆锥孔 Spindle Cone |
莫氏4号 | 莫氏5号 |
主轴端面至工作台面的最大距离mm The end of spindle to table the maximum distance |
800 | 760 |
主轴允许的最大扭转力矩N.M Maximum permissible torque of spindle |
350 | 500 |
主电动机功率KW Spindle motor power |
3 | |
主轴中心线至导轨面的距离mm Spindle center line to guide surface distance |
335 | |
主轴行程mm Spindle travel |
250 | |
主轴箱行程mm Spindle box trip |
360 | |
主轴转速r/min(12级,50HZ) Spindle speed |
31.5、45、63、90、125、180、250、 335、500、710、1000、1400 |
|
主轴每转进给量mm/r(9级) Number of spindle feeds |
0.056、0.112、0.16、0.224、0.315、 0.45、0.63、0.9、1.8 |
|
工作台行程mm Travel of working table |
280 | |
工作台工作面积mm2 Table work area |
480×550 | |
冷却泵功率KW Cooling pump motor power |
0.06 | |
冷却泵流量L/min Cooling pump flow |
25 | |
轮廓尺寸mm Overall dimension(L×W×H) |
1200×680×2565 | |
机床净重Kg Machine weight |
约1300 | |
